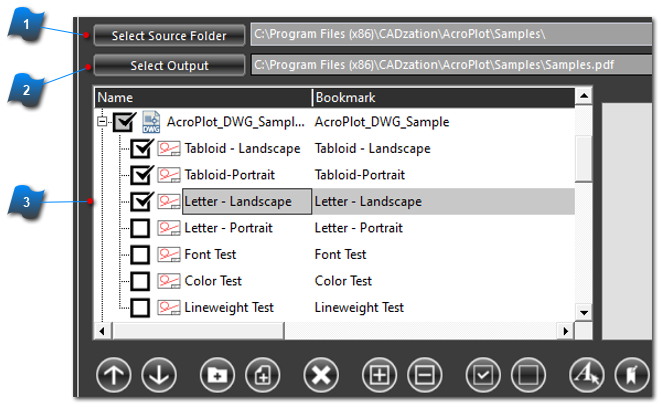

Step 5: Select the Source Folder and Output File/Folder


Step 5: Select the Source Folder and Output File/Folder

1

Select File Source Folder

  • AcroPlot Pro opens each drawing to get information to list included layouts, views and layers for plotting
  • Also gets information to include in PDF bookmark text
2

Select the Output File or Output Folder

  • This is where the new converted files will be placed.
  • For output "Single PDF containing all files" this will be the file name
  • For output "One file per PDF or Layout" this will be the folder name

  • Defaults to "Source Folder\SourceFolderName.PDF"
3

File List

Displays all files in that folder that match the file type options set earlier.
